COMING SOON - Defiant Intercooler spray kit

Built locally. Developed for racing. Designed to fight heat soak.

The Defiant Race Supplies Intercooler Water Spray Kit is a complete, boost-activated cooling system designed for turbocharged race and high-performance vehicles.

During hard track use, repeated acceleration and high boost generate significant heat through the charge-air system. As intercooler temperatures rise, cooling efficiency decreases and intake-air temperatures can increase, particularly during longer sessions and between closely spaced laps.

The Defiant system sprays a fine atomised water mist directly across the external face of the intercooler. Evaporation and airflow help remove heat from the intercooler core, assisting it in controlling charge-air temperatures during demanding use.

Unlike water/methanol injection, nothing is injected into the engine or intake tract. The system simply provides additional external cooling to the intercooler.

Automatic boost-activated operation

At the heart of the system is an adjustable pressure-switch controller. Once the preset boost pressure is reached, the system automatically activates the high-flow 12V pump and three intercooler misting nozzles.

This means the system can remain inactive during normal driving and automatically provide additional cooling when the engine is under significant load.

The activation point can be configured to suit the vehicle and application.

The system has been developed primarily with circuit racing, time attack, drag racing and other high-performance turbocharged applications in mind.

It is particularly useful where a car experiences increasing intake temperatures over consecutive laps or where limited airflow, packaging constraints or high ambient temperatures make intercooler heat soak a concern.

With a large 6.5-litre reservoir, three-nozzle arrangement and 5 metres of main water line, the kit also provides flexibility for different intercooler sizes and vehicle layouts.

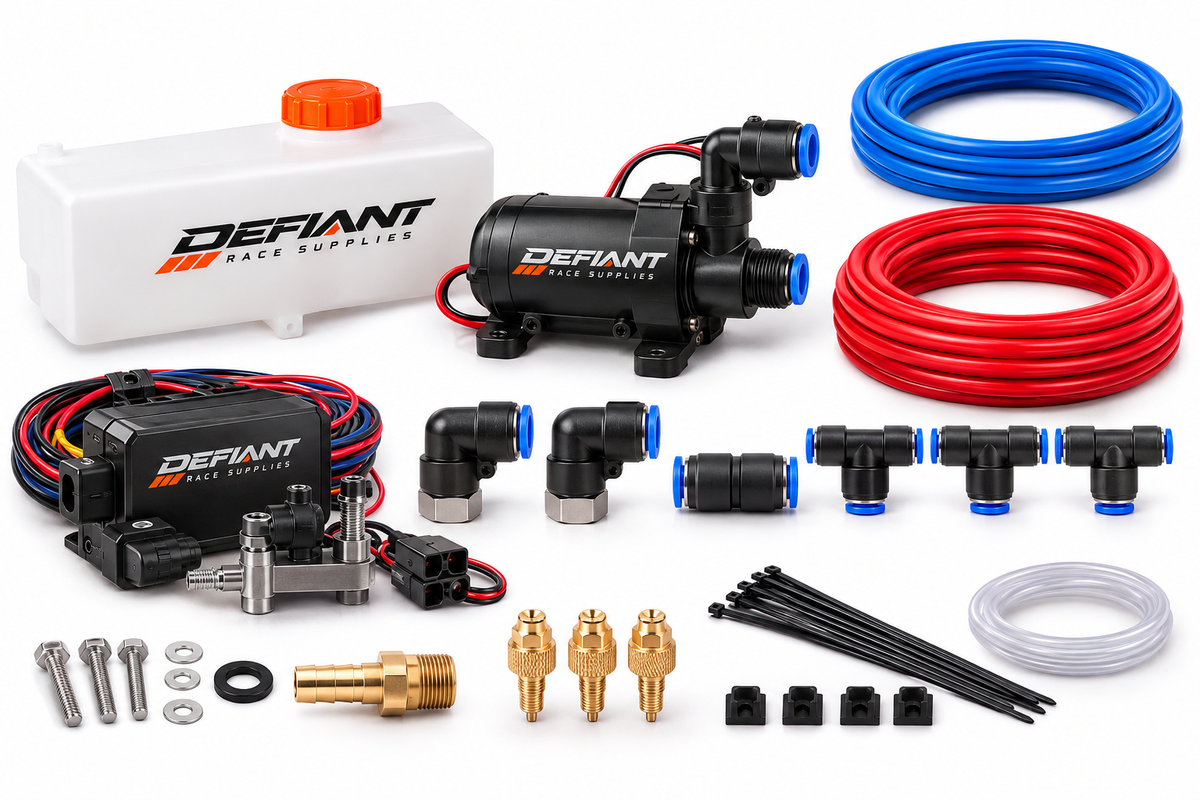

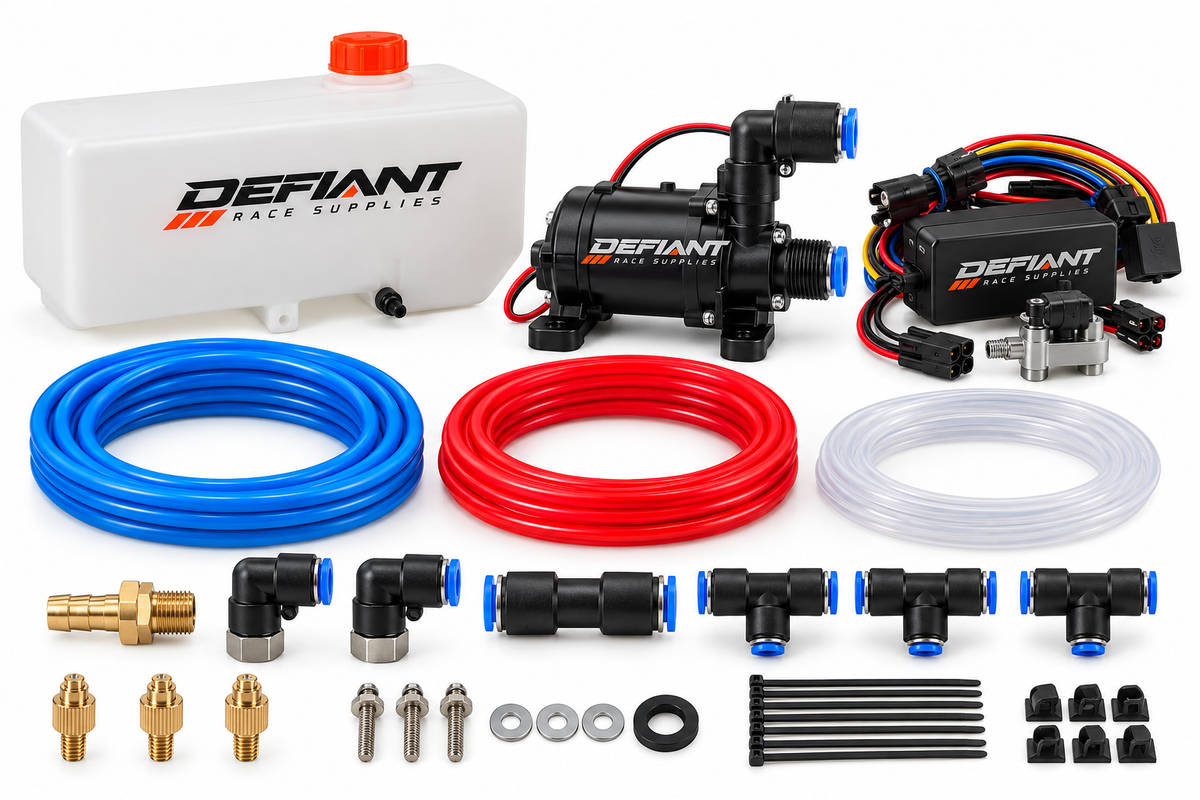

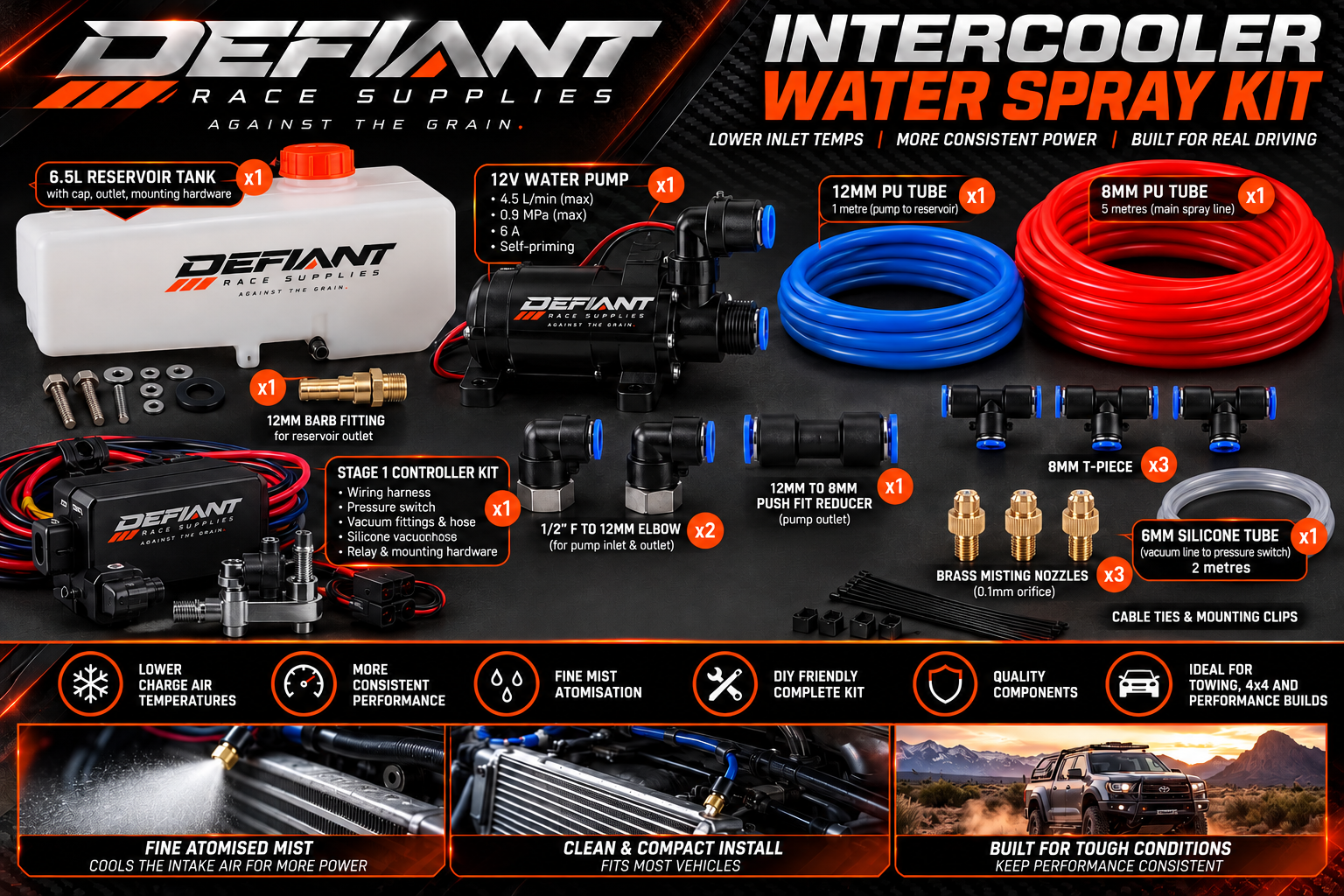

What’s included

● 1 × 6.5L water reservoir with cap and mounting hardware

● 1 × 12mm reservoir outlet/barb

● 1 × 12V high-flow water pump

● Up to 4.5 L/min pump capacity

● 12V operation

● Self-priming design

● 1 × boost-activated controller system

● Adjustable pressure switch

● Control unit

● Relay

● Wiring harness

● Electrical connectors

● Vacuum/boost fittings

● 1 × 1 metre 12mm PU water line

● Large-bore reservoir-to-pump feed

● 2 × 1/2” female to 12mm push-fit pump elbows

● 1 × 12mm-to-8mm push-fit reducer

● 1 × 5 metre 8mm PU water line

● Pump outlet and intercooler distribution line

● 3 × 8mm push-fit T-connectors

● 3 × atomising mist nozzles

● 6mm silicone vacuum/boost reference hose

● Cable ties and installation/mounting hardware

Why an intercooler water spray system?

Lower intercooler temperatures — Atomised water helps remove heat from the intercooler core through evaporative cooling.

Improved consistency — Designed to combat progressive heat soak during repeated high-load operation.

Automatic operation — Boost-pressure activation means the driver doesn’t need to manually switch the system on during a lap.

Three-nozzle coverage — Multiple spray points allow the system to distribute water across a larger portion of the intercooler face.

No engine injection — Water is sprayed externally onto the intercooler rather than introduced into the engine.

Flexible installation — Generous tubing lengths and push-fit plumbing allow the system to be adapted to a wide range of race-car layouts.

Locally built and assembled — The Defiant system is assembled locally in South Africa using individually selected components rather than being supplied as a generic pre-packaged imported kit.

Built for the track

The Defiant Intercooler Water Spray Kit has one purpose: help the intercooler deal with heat when the car is being driven hard.

Whether you’re chasing consistent laps during a circuit race, sitting on boost during a time-attack session or trying to manage intake temperatures in a high-powered turbocharged build, the system provides an additional cooling tool without modifying the engine’s fuel or intake system.
